VMware VRDCEX on Oculus Rift

So if you haven’t already seen it Alan Renouf did an awesome live demo with Pat Gelsinger at VMWorld Barcelona. I was fortunate enough to see this on a session at the end of the US VMworld of which I just wish it was more publicised as it was a great session. Well either way if you want a recap here it is below. Its just a shame I wasn’t brave enough to ask Joe Baguley to demo this at UKVMUG this week

So why write this article, I have recently been fortunate enough to be the owner of an Oculus Rift but all the code and demos are written for the HTC Vive or so I thought. I have found a nice workaround without the need of any proprietary  coding to help the adoption of this awesome project. I am also hoping to add to the below with a video how to.

My only little preamble is this may be subject to change as some of this is using beta/alpha software and I achieved this using the following


Latest version of Steam and Steam VR

Oculus Rift with Beta Enabled

Java JRE 8U151


Step 1. Get all the required files for VRDCEX by cloning/downloading the GitHub Repo and getting the build from here

Step 2. Extract both these files to a common location, I decided to put these under the below folder but its fine to chose your own

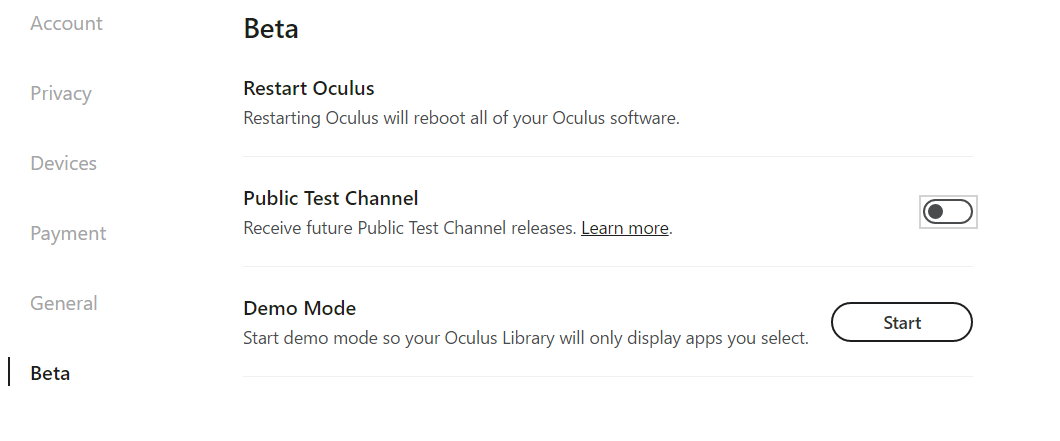

Step 3. Go get the latest copy of Oculus and enable the following features one you have done your setup. Select the cog at the top and go into settings. Select the Beta submenu and enable the public test channel. Finally go into general and enable unknown sources.

Step 4. Go grab the latest copy of Steam and Steam VR once Steam is setup. This essentially works as our translator/interpreter for our Oculus so we don’t need any coding. Before we start to configure VRDCEX we need to launch Steam VR just to ensure it can see the Oculus.



For any demo’s I usually try and use Standing Only as space is usually limited

If you have got this far hopefully you will now see the below. Try and put on the headset and just make sure that SteamVR does load before continuing

Step 5. Lets get down to the main bit and install/configure VRDCEX. Firstly go back to Steam and select add game at the bottom of your games list.

From here select browse and navigate to where you extracted your downloads earlier and select the executable. Hit add selected programs and you should now see this appear in your Steam library.

Step 6 (Optional). Go to your extracted files and find the assets folder and wire mock. Create a shortcut on your desktop for On-Prem_Endpoint.bat. You will also need the latest version of Java JRE. The nice thing about this is until you are ready it allows you to play with the app by emulating vCenter.

I used JRE 8U151 for my configuration
Double click your shortcut but you will need to override Windows 10 protection as it was downloaded

Check that everything is running by going to https://localhost:8082 before proceeding

Step 7. It sounds odd but go and launch the exe but don’t really worry about your headset. You need to do this as it generates a configuration file under your app data folder that you need to amend. Close the VRDCEX app once its opened and then open the config file. In mine I have put the Wireframe emulator in step 5 but you can put in your own vCenter here at any point.

Step 8. Enjoy…. Go back to Steam and launch your App! Put on your headset and enjoy your virtual datacenter

Bonus:- Once you have launched it a few times you should now see this in the Oculus menu!
